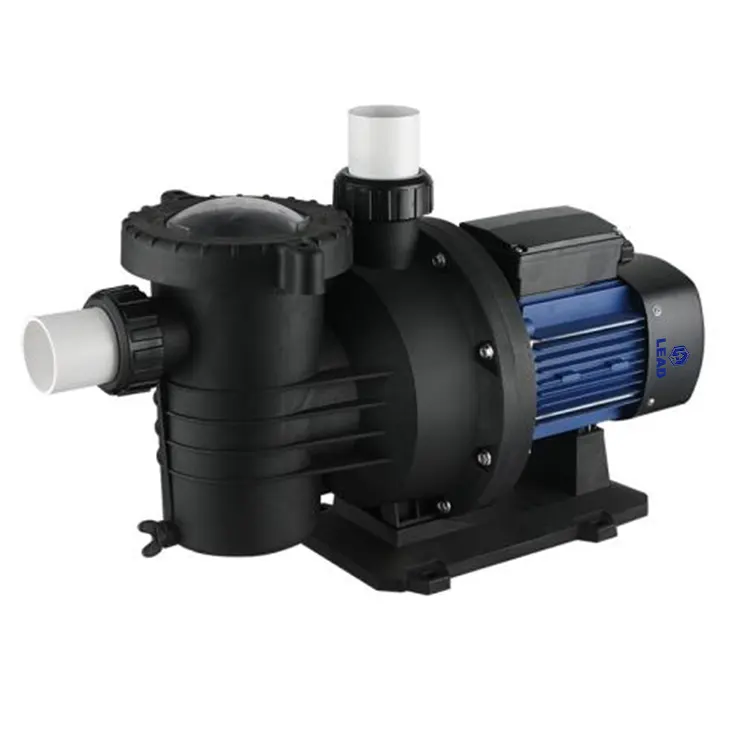

LEAD PUMP, a reputable manufacturer in China, is willing to offer you High Efficiency Swimming Pool Pump. We promise to provide you with the best after-sale support and prompt delivery. INSTALLATIONS AND USE: For filtration systems for swimming pool water circulation. Suitable for clean as well as slightly polluted waters with some suspended solids. The pump should be installed in an enclosed environment or sheltered from inclement weather. OPERATIONAL CONDITIONS: The liquid temperature is capable of reaching a maximum of +50°C. The ambient temperature is suitable for use up to +50°C. Max. Working pressure is 3 bar. The pump has a continuous duty. OPTIONS AVAILABLE ON REQUEST: Special mechanical seal 50 or 60 Hz frequency ELECTRIC MOTOR: Two-pole induction motor, runs at 50Hz (n=2850 rpm). Single phase is between 220V and 240V. Three phase is between 380V and 415V. The winding is protected by thermal cut-out. The insulation class is F. The product has been classified as IP66 protected.
110-0.75-1.5(LDPP SWIMMING POOL PUMP)
|
Model |
Caliber |
Power |
Max Head |
Max Flow |
Max Diving depth |
|
|
Single phase |
Inch |
KW |
HP |
m |
M³/h |
m |
|
LDPP550 |
G2"*G2" |
0.55 |
0.75 |
8 |
18 |
2 |
|
LDPP750 |
G2"*G2" |
0.75 |
1 |
10 |
20 |
2 |
|
LDPP1100 |
G2"*G2" |
1.1 |
1.5 |
12 |
23 |
2 |
|
LDPP1500 |
G2"*G2" |
1.5 |
2 |
14 |
26 |
2 |
